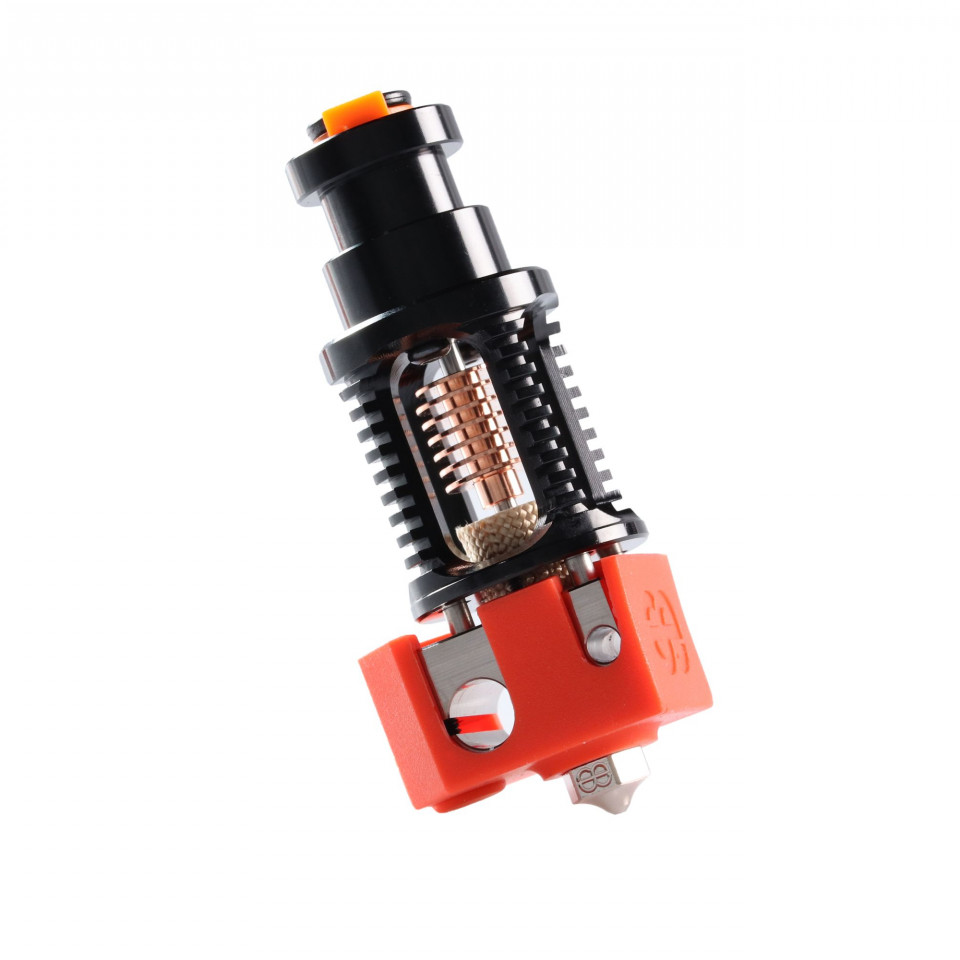

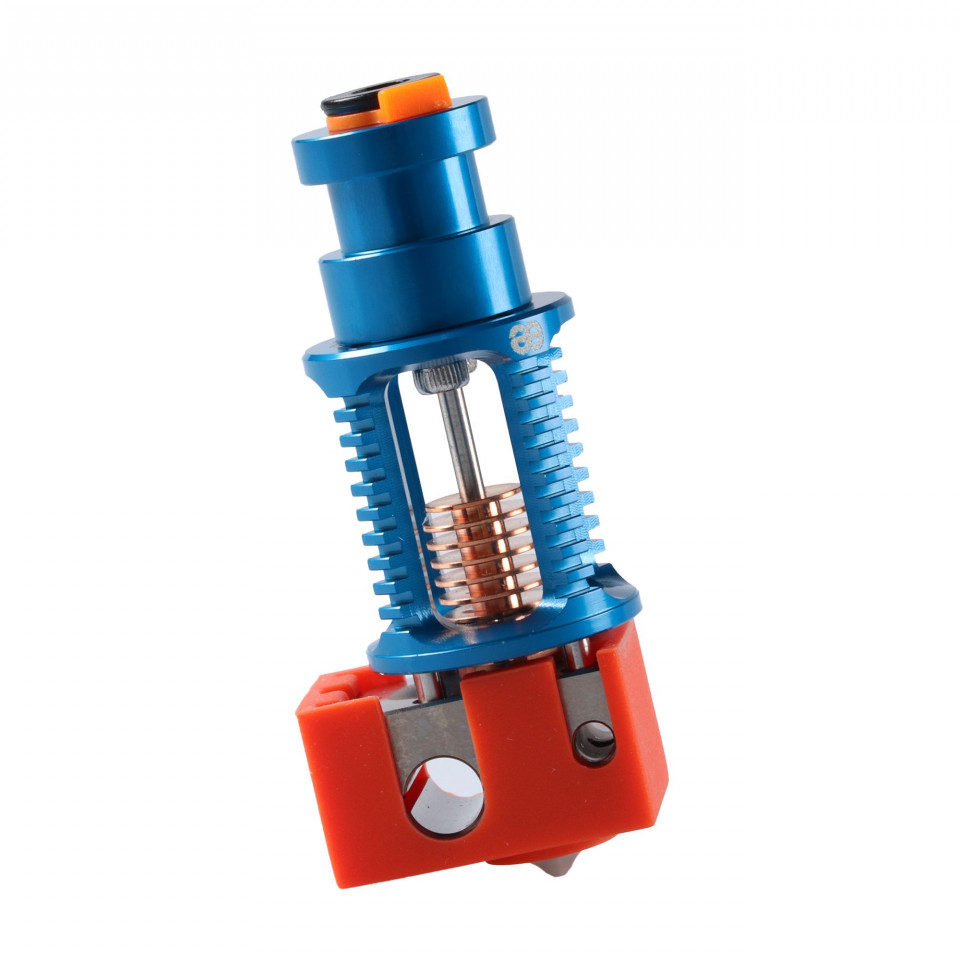

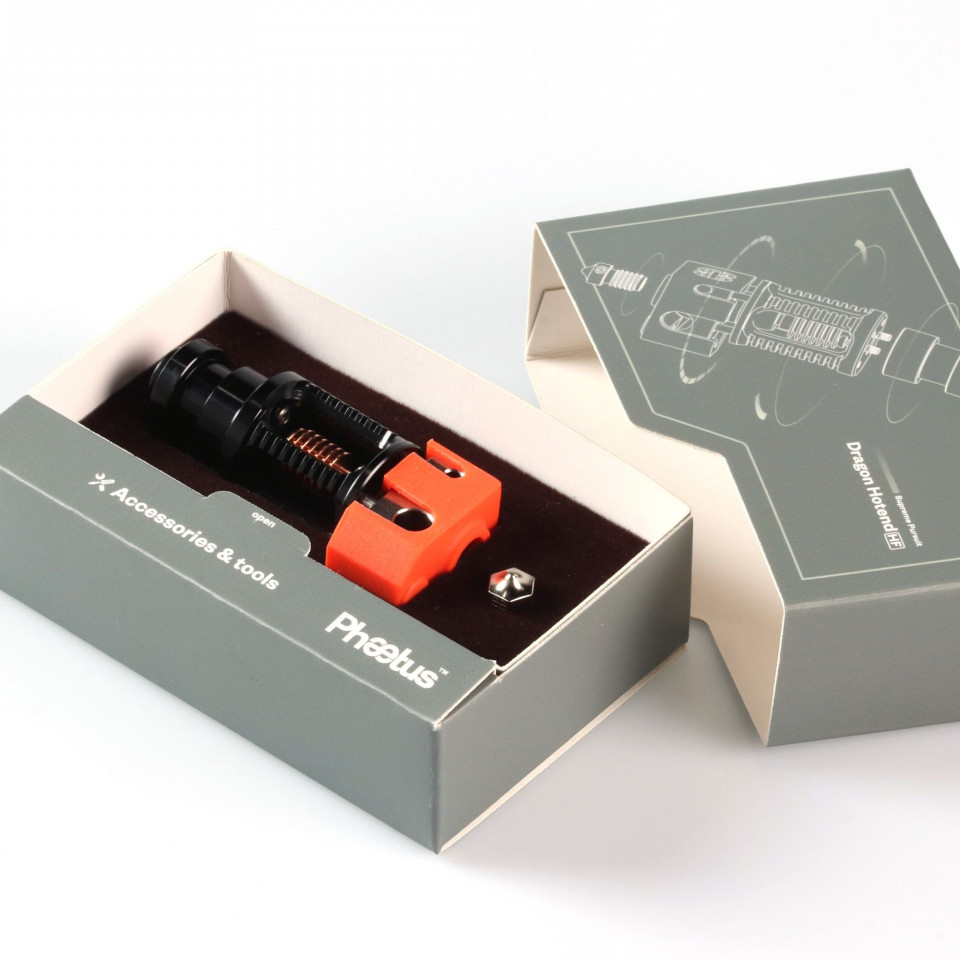

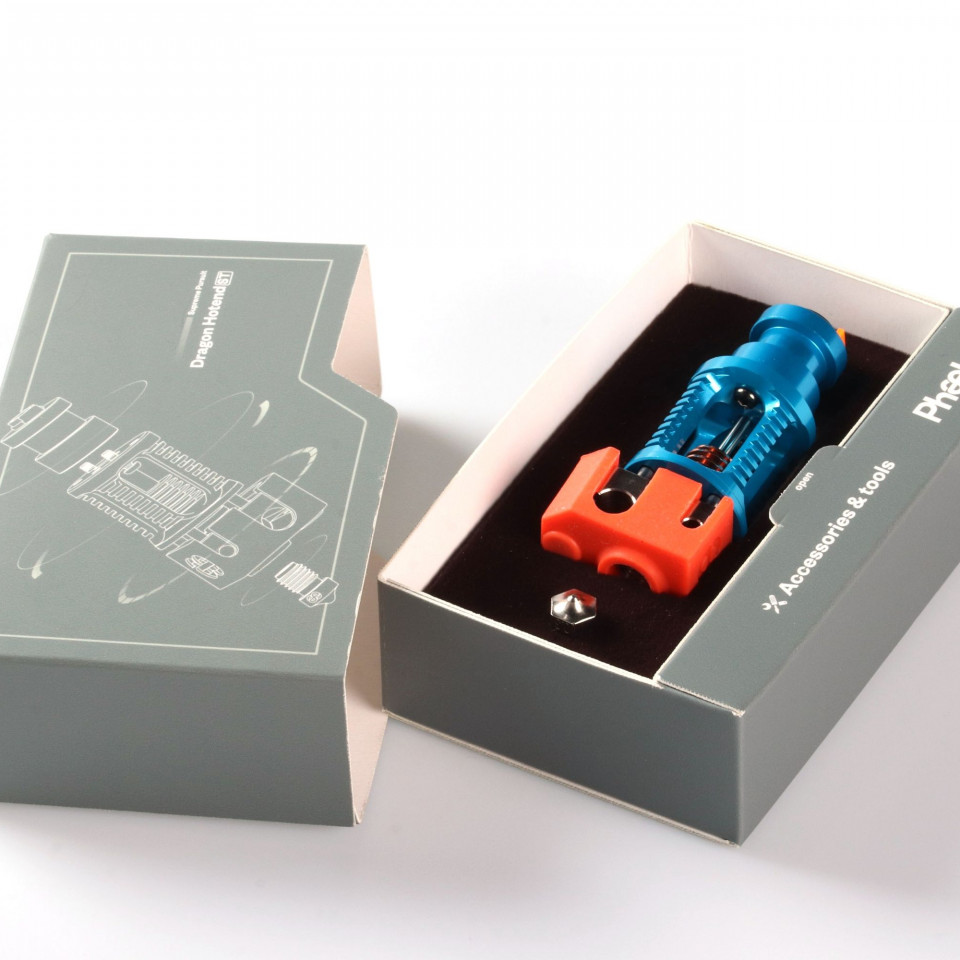

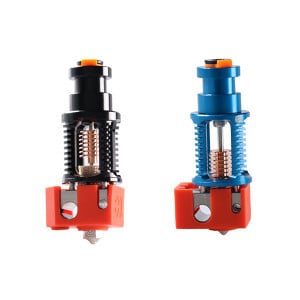

Kit cap termic Phaetus Dragon

Description

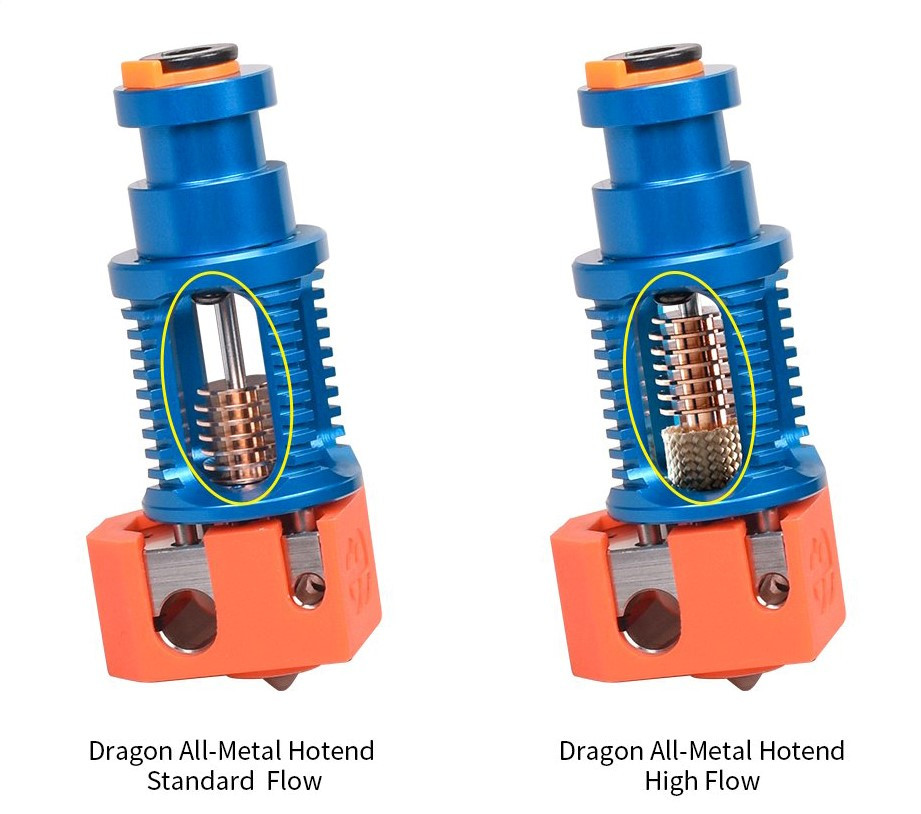

DRAGON HIGH FLOW & STANDARD FLOW

- All-metal kit, with overall high temperature resistance up to 500 ℃. Heat break with an ultra-thin wall thickness as thin as 0.1 mm, realizing an excellent thermal insulation.
- Increased rigid support structure guarantee the heat break remaining intact under the impact of external force.
- Integral frame rigid structure makes nozzle replacement more convenient without grasping the heat block.
- The inner hole roughness of nozzle and heat break 0.4, which allow a more smooth movement of filament, resulting a higher resolution prints.
- ST and HF version are with the same overall dimension, which realizes a zero barrier for interchangeability.
- The hot-end is mainly composed of copper alloy material which has the advantage of faster heating and better heat dissipation.
- Flexible combined structure design makes a strong compatibility.

Compatibility

With V6 adapter:
- All V6 Hot-End compatible interfaces
- Prusa I3 MK3 / MK3S
- Titan Extruder
- BMG Extruder

Without V6 adapter:
- Mosquito Hot-End compatible interfaces

Mounting brackets for different printers:
- Prusa I3 MK3/MK3S mount bracket STL: https://www.prusa3d.com/prusa-i3-
printable-parts/
- Creality CR-10, MicroSwiss, E3Dv6 / Volcano, Tevo Tornado / Tarantula:
https://www.thingiverse.com/thing:2759439
