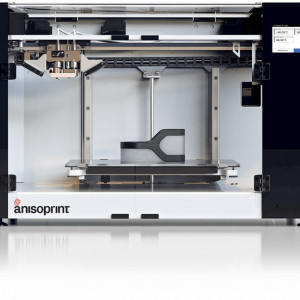

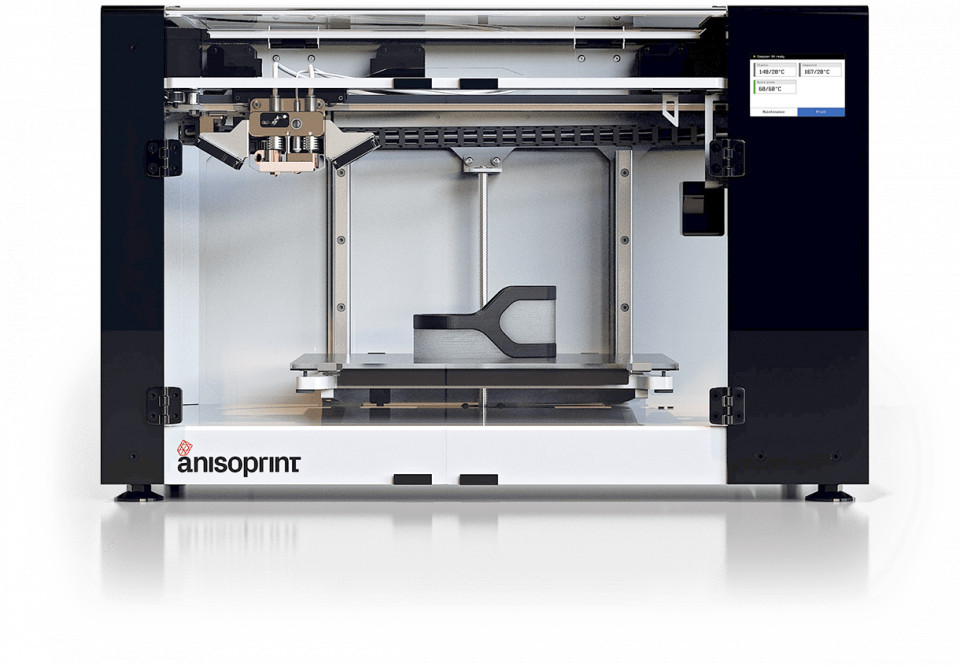

Anisoprint Composer A4

Name: Anisoprint Composer A4
Brand: ANISOPRINT
SKU: IMP-ANISOPRINT-COMPOSER-A4
Price: 89999.7 RON
Availability: OutOfStock

89.999,⁷⁰ RON

Prețul include TVA, nu include transportul și se aplică pentru comenzi online. Pentru achiziții publice, comenzi directe, etc. prețurile pot diferi.

Cum te putem ajuta?

Suna-ne: 0758081003 (Luni-Vineri, 10:00-16:00)

Descriere

Anisoprinting technology is a new solution for the production of optimized composite parts and structures with the demanded physical and mechanical properties.

The solution is based on patent pending Composite Fiber Coextrusion (CFC) technology. Different thermoplastic polymers can be reinforced with continuous fibres, consolidated and cured within a single-stage fully automated process that does not require post processing or tooling. The two-matrix (thermoset+thermoplastic) approach ensures low porosity, good adhesion of fiber to polymer, superior mechanical properties.

With Composer you can print end-use parts that are stronger, lighter and cheaper than their counterparts from the other materials (metal, plastic, non-optimized composites)

Build area size	297 mm х 210 mm х 140 mm
Printing technology	Fused Filament Fabrication (FFF) Composite Fiber Co-extrusion (CFC)
Min. layer thickness	60 µm

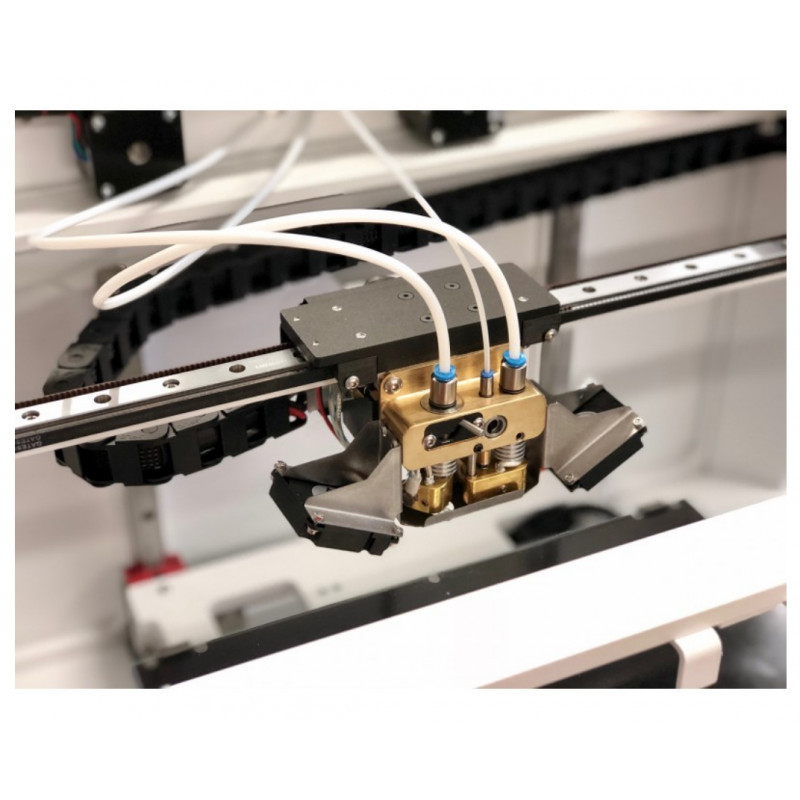

Printhead	Dual nozzle (FFF extruder; CFC extruder with reinforcing fiber cutting device)
Nozzle diameter, FFF	0.4 mm
Print speed, FFF	10 mm/sec – 80 mm/sec
Print speed, CFC	1 mm/sec – 10 mm/sec
Plastic filament diameter	1.75 mm
Compatible plastics	Plastics with processing temperatures up to 270°С
Reinforcing fiber	Anisoprint CCF-1.5k, CBF
Buildplate surface	Glass
