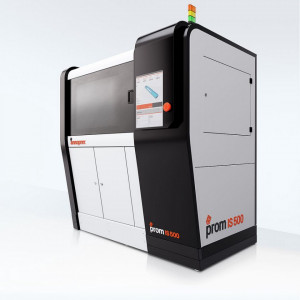

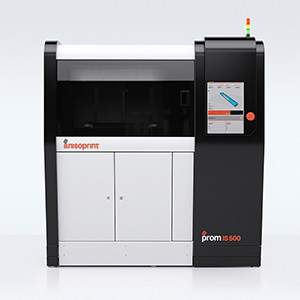

Anisoprint PROM IS 500

Descriere

Make your manufacturing process easier, faster and cheaper producing tools, jigs and fixtures from composites with continuous fibers.

- large build area size: 600mm x 420mm x 300mm;
- high temperature plastics (up to 400C) as a matrix: PEEK, PEI;
- up to 160С heating chamber temperature;
- up to 4 changeable print heads: CFC print head with 3k or 1.5k Composite Carbon/Basalt Fiber reinforcing material; FFF Print heads up to 150 mm/sec printing speed;
- industrial safety and motion control systems;

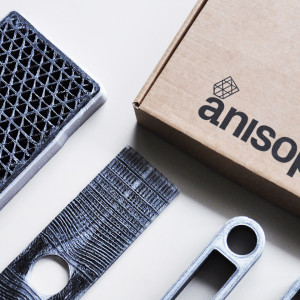

- printing composite lattice structures — optimal shape for composites: lower weight, price and production time;

BASIC SPECIFICATIONS

Printing: Print platform size 600mm x 420mm x 300mm

Printing technology: Fused Filament Fabrication (FFF), Composite Fiber
Co-extrusion (CFC)

Min. layer thickness (microlayer): 60 µm

Number of print heads: Up to 4

Type of the print head:
FFF
Print Head up to 270C
Print Head for soluble material
HT Print Head (up to 400C - option)

CFC
Print Head 1.5k CCF with cutter
Print Head 3k CCF with cutter
Print Head CBF with cutter

Print head cooling system: Liquid cooling

Nozzle diameter for FFF: 0.4 mm ... 1.5 mm

Plastic filament diameter: 1.75 mm

Compatible plastics: Plastic with processing temperatures up to 270°C: PLA, ABS, PETG, PA(Nylon), TPU, PC, ASA SBS (Also any CF/GF filled plastics using hardened steel nozzle)

Option for HT Extruder: PEEK, PEI

Reinforcing fiber: Anisoprint 1.5k Composite Carbon Fiber, Anisoprint 3k Composite Carbon Fiber, Anisoprint Composite Basalt Fiber

TEMPERATURE

Maximum plastic extruder temperature: 270°C; 400°C (option)

Maximum composite extruder temperature: Up to 400°C

Maximum platform temperature: 160°C

Material storage temperature: 30°C ... 90°C

Maximum temperature for heating chamber (optional): 160°C

Interface: Ethernet, USB, Touchscreen

Material sensors: Optical sensor for filament

SOFTWARE

Slicer: CFC + FFF: Anisoprint Aura, FFF: Conventional G-Code slicer

OS support: Windows 7, 8, 10, etc

Physical characteristics: Printer size (LxWхH) - 1.9m х 1.2m х 1.9m
